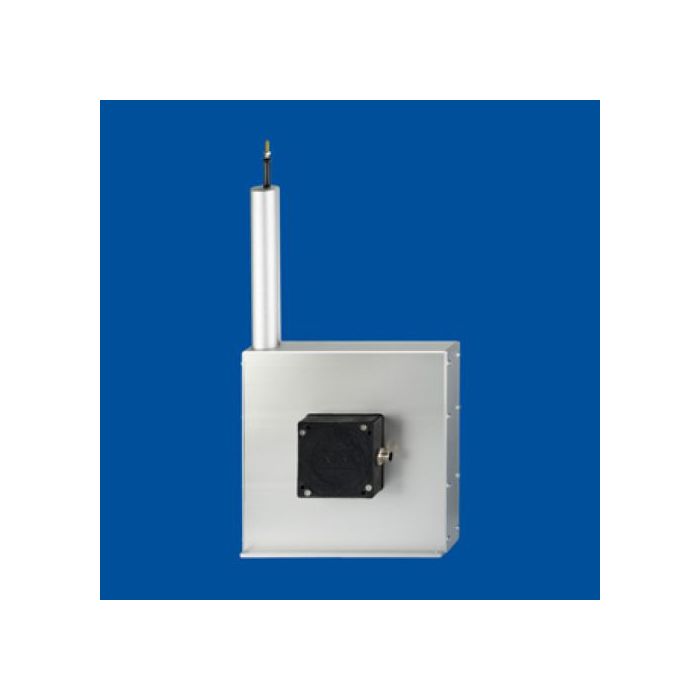

WST21 Cable Extension Position Sensor with integrated Inclination Sensor up to 20m
- Artikel code: WST21 up to 20m with Inclination Sensor
- WST21 Cable Extension Position Sensor with integrated Inclination Sensor up to 20m
Product description
POSIWIRE®
Measurement ranges up to 20,000 mm / up to ± 180º
Protection class IP67
With magnetic absolute encoder
With inclination sensor in MEMS technology
Redundant version available
| Output | CANopen CANopen redundant |
| Resolution | adjustable via CAN bus |
| Linearity (position) | Up to ±0.05 % f.s. |
| Linearity (inclination) | 0.05° (±30°) 0.1° (±60°) 0.2° (±180°) |
| Sensing device | Magnetic absolute encoder / MEMS element |
| Housing material | Aluminum and PBT Measuring cable: stainless steel |
| Protection class | IP67/IP69 (with mating connector only) |
| Connection | Connector M12 |
| Weight | Approx. 1,2 - 4,5 kg |
More Information
| Article name | WST21 Cable Extension Position Sensor with integrated Inclination Sensor up to 20m |
|---|---|
| Brand | ASM |
