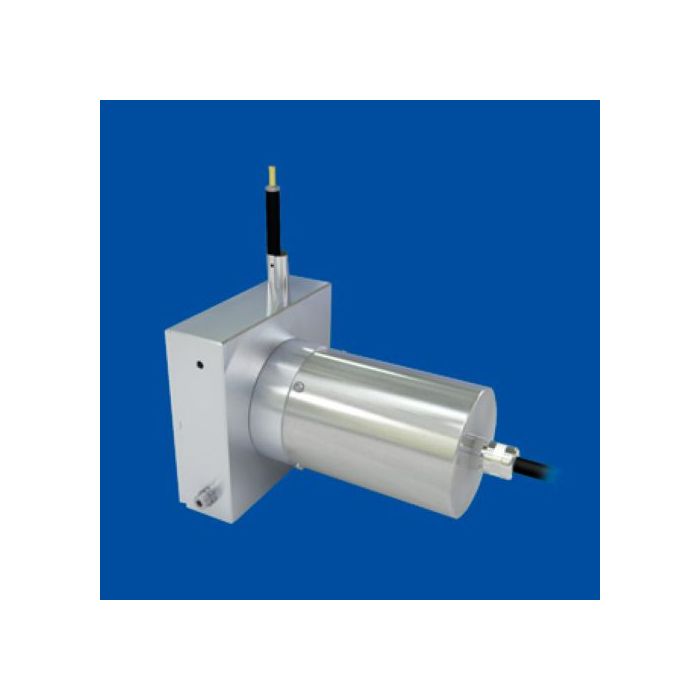

WS12EX Cable Extension Position Sensor - Dust-Ex-Proof up to 3m
- Artikel code: WS12EX up to 3m
- WS12EX Cable Extension Position Sensor - Dust-Ex-Proof up to 3m
Product description
POSIWIRE®
Measurement length up to 3,000 mm, explosion protected
Protection class IP65
With explosion protection (dust-EX)
| Output | Potentiometer Voltage 0... 10 V Current 4 ... 20 mA, 2 or 3 wire |
| Resolution | Analog: essentially infinite |
| Linearity | Up to ±0.05 % f.s. |
| Sensing device | Precision potentiometer |
| Housing material | Aluminum Measuring cable: stainless steel |
| Protection class | Housing: IP65 Dust-EX-proof: II 3D Ex tc IIIC T80°C Dc |
| Connection | Cable output, standard length 2 m |
| Weight | 1,500 mm approx. 1 kg, 2,000 mm approx. 1.5 kg |
| Explosion-proof | DIN EN 60079-0 (September 2019) DIN EN 60079-31 (December 2014) |
More Information
| Article name | WS12EX Cable Extension Position Sensor - Dust-Ex-Proof up to 3m |
|---|---|
| Brand | ASM |
| Degree of protection | IP65 |
