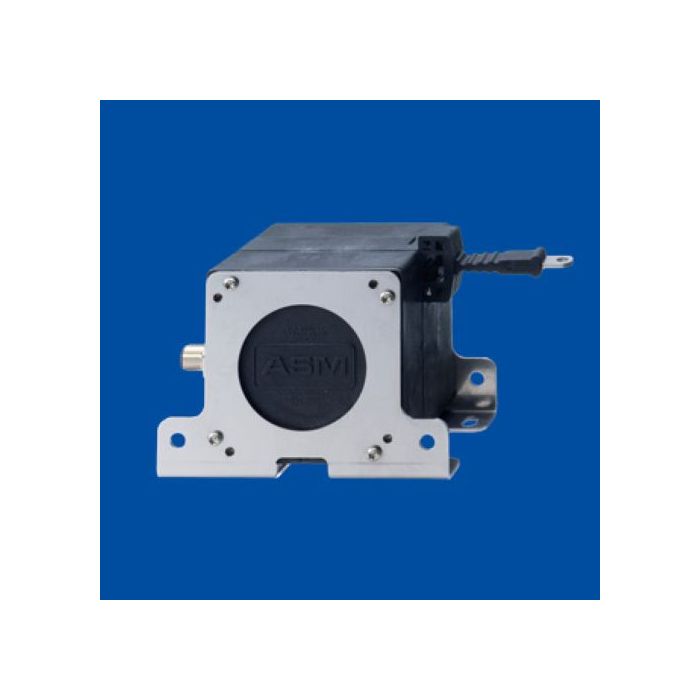

WBT85 Tape Extension Position Sensor with integrated Inclination Sensor up to 6m
- Artikel code: WBT85 up to 6m with Inclination Sensor
- WBT85 Tape Extension Position Sensor with integrated Inclination Sensor up to 6m
Product description
POSITAPE®
Measurement ranges up to 6,000 mm / ±180º
Protection class up to IP67/69
With inclination sensor in MEMS technology
Optional redundant version
| Output | CANopen CANopen redundant |
| Resolution | adjustable via CAN bus |
| Linearity (position) | Up to ±0.05 % f.s. |
| Linearity (inclination) | 0.05° (±30°) 0.1° (±60°) 0.2° (±180°) |
| Sensing device | Magnetic absolute encoder / MEMS element |
| Housing material | PBT and stainless steel Measuring tape: stainless steel, 10 mm wide, 0.08 mm thick |
| Protection class | IP67/IP69 |
| Connection | Connector M12 |
| Weight | max. 2 kg |
More Information
| Article name | WBT85 Tape Extension Position Sensor with integrated Inclination Sensor up to 6m |
|---|---|
| Brand | ASM |
| Degree of protection | IP69K, IP67 |
