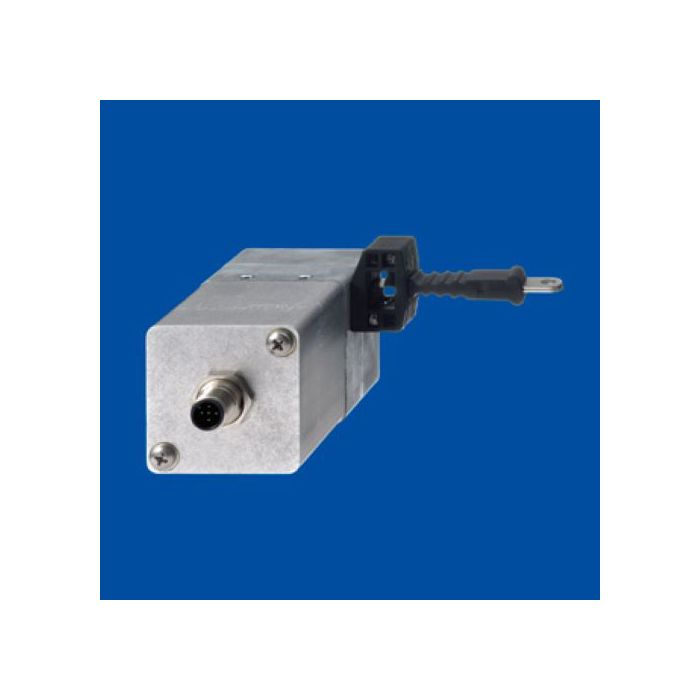

ASM Position sensor with steel band up to 2m
- Artikel code: WB10ZG up to 2m
- ASM Position sensor with steel band up to 2m
Product description
POSITAPE®
Measurement length up to 2,000 mm
Protection class IP65
| Output | Voltage 0.5... 10 V Voltage 0.5... 4.5 V Current 4 ... 20 mA, 3-wire technology Voltage or current output, programmable SSI CANopen SAE J1939 |
| Resolution | < 0.05 mm |
| Linearity | Up to ±0.05 % f.s. |
| Sensing device | Magnetic absolute encoder |
| Housing material | Zinc die cast, aluminum Measuring tape: stainless steel, 10 mm wide, 0.08 mm thick |
| Protection class | IP65 |
| Connection | Connector M12 |
| Weight | Approx. 1.3 kg |
More Information
| Article name | ASM Position sensor with steel band up to 2m |
|---|---|
| Brand | ASM |
| Degree of protection | IP65 |
