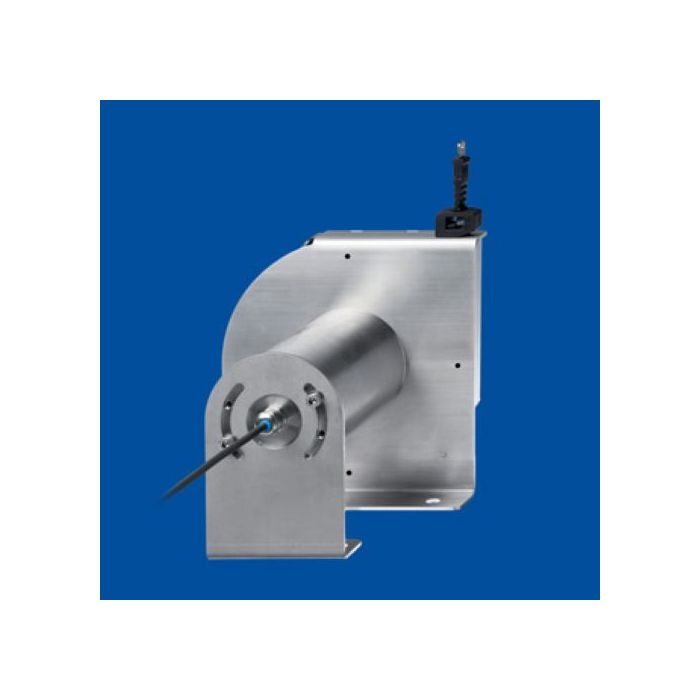

ASM Position sensor with steel band up to 10m
- Artikel code: WB100M up to 10m
- ASM Position sensor with steel band up to 10m
Product description
POSITAPE®
Measurement length up to 10,000 mm for offshore applications
Protection class up to IP68/69
Optional redundant version
| Output | Voltage 0.5... 10 V Voltage 0.5... 4.5 V Current 4 ... 20 mA, 3-wire technology Voltage or current output, programmable Voltage or current output, redundant SSI CANopen SAE J1939 |
| Resolution | < 0.05 mm |
| Linearity | Up to ±0.05 % f.s. |
| Sensing device | Magnetic absolute encoder |
| Housing material | Stainless steel, TPU Measuring tape: stainless steel, 10 mm wide, 0.08 mm thick |
| Protection class | IP68/IP69 |
| Connection | Cable, standard length 2 m |
| Weight | Approx. 4.5 kg - 6.5 kg depending on measurement range |
More Information
| Article name | ASM Position sensor with steel band up to 10m |
|---|---|
| Brand | ASM |
| Degree of protection | IP69K, IP68 |
