Heavy-duty helix couplings
- Artikel code: W6AK 1625
- Heavy-duty helix couplings
Product description

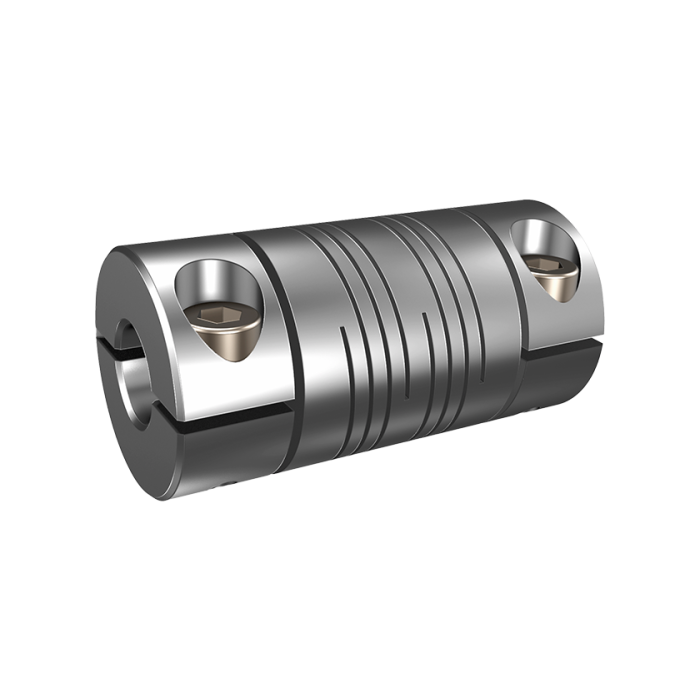

These four heavy-duty helix couplings cover the “golden mean” with their sizes. Their size can be derived from the product name: The 6 after the “W” stands for the number of coils, the first two numbers stand for the diameters with 10, 13, 16 and 19 mm, the last for the overall lengths of 20, 23, 25 and 28 mm in length. This means that abp has the right product for every millimeter of installation length. Material: aluminum featuring clamp hubs. Optimum compensation of misalignments with play‑free power transmission.
More Information
| Article name | Heavy-duty helix couplings |
|---|---|
| Coupling max | 3, 4 Nm |
| Brand | ABP |
| Speed torque max | 5000 min-¹ |
