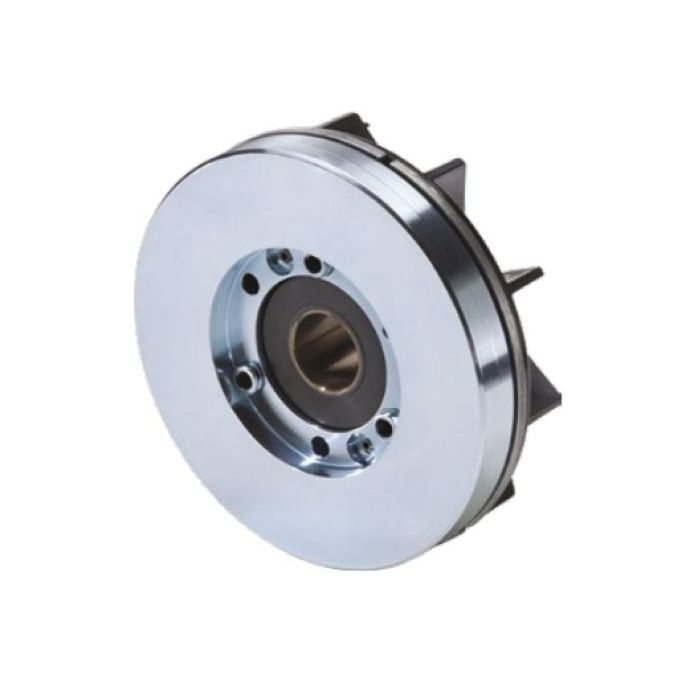

KENDRION Spring-applied single-surface brake 0.25-3 Nm

SLIM LINE

The Slim Line is comprised of spring-applied singledisc brakes where the spring actuated brake-discs are attached to the shaft. The brake disc can be designed as a motor fan. Being designed as singlesurface brakes, Slim Line brakes are not only extremely flat but are also released with zero residual torque. Electromagnetically operated spring-applied brakes generate the brake torque when voltage is removed.

Versions:
76 13105C00
- Torque 0.25 Nm, (0.5 Nm; 50% ED)
- 102 V DC, 230 V AC, 50 Hz
- IP 00

76 13111C00
- Torque 3 Nm
- 102 V DC
- IP 54 (if installed under motor fan hood)

Applications:
- Machine tools, e.g. woodworking machinery
- Flat motors
- Building installations
- Saws, e.g. circular saws
- Wheelchairs ...
