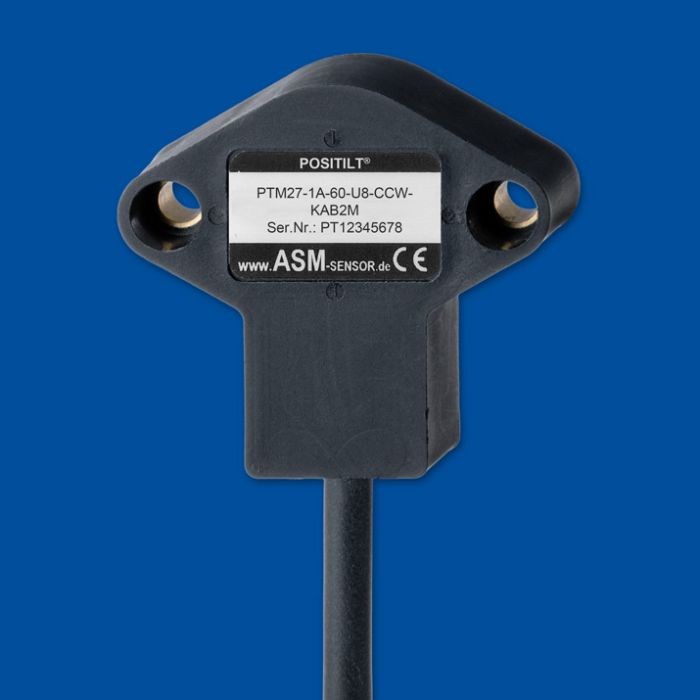

PTM27 Inclination Sensor
- Artikel code: PTM27
- PTM27 Inclination Sensor
Product description
POSITILT®
High accuracy inclination sensor
Measurement range up to ±180°
Single or dual axis measurement
Resolution up to 0.001°
Robust, compact plastic housing
Protection class IP67
| Output | Voltage 0.5 ... 10 V (on request) Voltage 0.5 ... 4.5 V ratiometric (on request) Voltage 0.5 ... 4,5 V Current 4 ... 20 mA, 3 wire (on request) CANopen SAE J1939 |
| Measurement range | ±5° ... 180° (selectable in 5° increments) |
| Resolution | 0,005° (Measurement range ±180°) 0,001° (Measurement range ±5°) |
| Linearity | up to 0.05° (±30°) up to 0.1° (±60°) up to 0.2° (±180°) |
| Sensing device | Integrated MEMS device |
| Housing material | Plastic |
| Protection class | IP67 |
| Connection | Cable 0.3 m with connector M12, 5 pin |
| Weight | approx. 20 g (without cable) |
More Information
| Article name | PTM27 Inclination Sensor |
|---|---|
| Brand | ASM |
| Degree of protection | IP67 |
