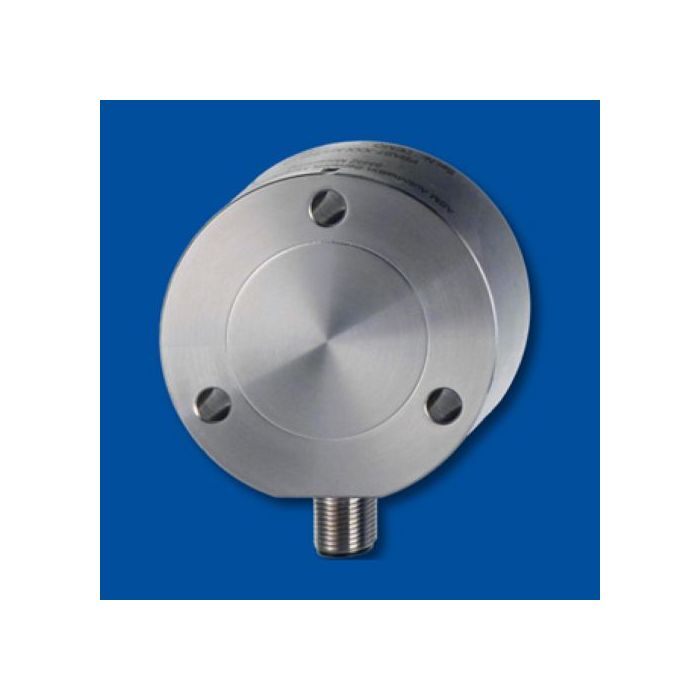

PTAM7 / PTDM7 Inclination Sensor
- Artikel code: PTAM7 / PTDM7
- PTAM7 / PTDM7 Inclination Sensor
Product description
POSITILT®
Robust stainless steel housing, also for hygienic applications
Measurement range up to ±180°
Single or dual axis measurement
Protection class IP67/IP69
| Output | Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Voltage or current output, tare function CANopen SAE J1939 |
| Measurement range | up to ±180° for 1 axis up to ±60° for 2 axes |
| Resolution | 0.05° |
| Linearity | ±0.5° |
| Sensing device | Integrated MEMS device |
| Housing material | Stainless steel EN 1.4404 (AISI 316L) |
| Protection class | IP67 / IP69 |
| Connection | Connector M12, 5-pin |
| Weight | Approx. 390 g (without cable) |
More Information
| Article name | PTAM7 / PTDM7 Inclination Sensor |
|---|---|
| Brand | ASM |
| Degree of protection | IP69K, IP67 |
