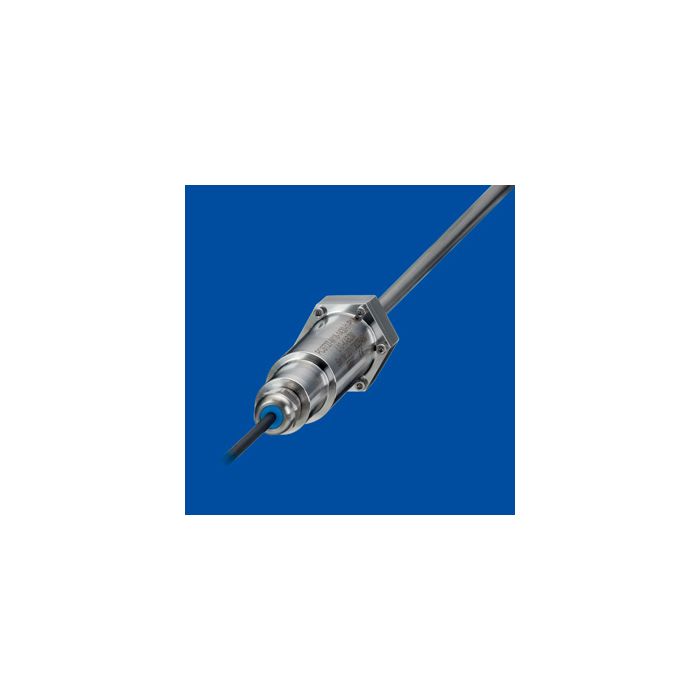

Rod Magnetostrictive Linear Displacement Sensor
- Artikel code: PCST27 Rod Sensor IP68
- Rod Magnetostrictive Linear Displacement Sensor
Product description
POSICHRON®
Rod-style sensor for underwater applications, hydraulic cylinders, level indicators
Protection class IP68/IP69
| Output | Voltage 0... 10 V, 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Voltage or current output, programmable (PMU) SSI CANopen SAE J1939 |
| Resolution | Analog: 16 Bit f.s., min. 10 µm SSI: 5, 10, 20, 50, 100 µm CAN: 50 µm |
| Linearity | Up to ±0.02 % f.s. |
| Repeatability | ±3 µm |
| Housing material | Stainless steel EN 1.4404 (AISI 316L) |
| Protection class: | IP68/IP69 (permanent pressure-proof up to 15 bar) |
| Connection | Cable, standard length 2 m |
| Mounting | Thread M18x1.5 / thread ¾ inch |
| Working pressure | 400 bar, higher values on request |
More Information
| Article name | Rod Magnetostrictive Linear Displacement Sensor |
|---|---|
| Brand | ASM |
| Degree of protection | IP69K, IP68 |
