Shaft and claw coupling stainless steel V4A 1.4404

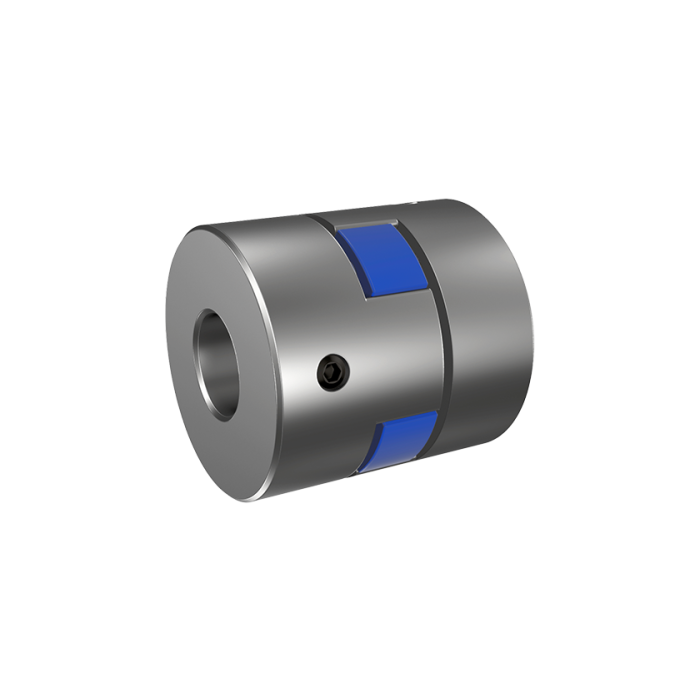

The KKYS 1500 shaft coupling made of V4A (1.4404) inox steel is a claw coupling in a small design with an installation length of just 15 mm and a diameter of 26.5 mm. It’s attached using screw hubs. The KKYS is particularly effective at mitigating short-term torque surges. Thanks to its positive torque transmission, it reduces irregularities in the transmission of movement and force, compensating for shaft misalignments very well in particular. The noise-reducing effect should also be emphasized. This is achieved, among other things, by the more pluggable coupling design with the help of integrable plastic spiders . Depending on the torque, the damping element can be selected from three different alternatives in terms of Shore hardness. The following principle applies: Lowest shore hardness BLUE. Medium Shore hardness WHITE. Highest Shore hardness RED.
