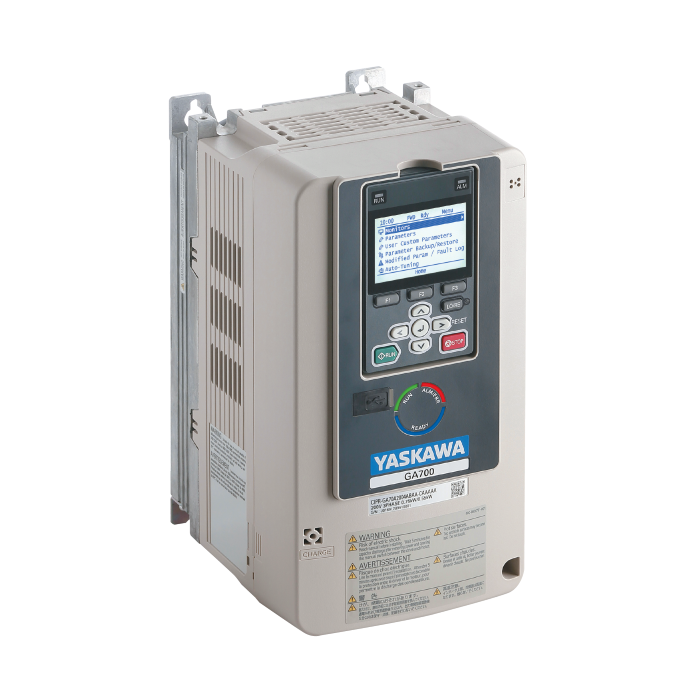

GA700 frequency converters
- Artikel code: GA700
- GA700 frequency converters
Product description
Power range from 0.55 to 630 kW, supporting V/f and Vector Control. Includes a front-panel Mini-USB and a Bluetooth-enabled digital operator for convenient configuration.
One drive for different applications
- Tuning-free with EZ vector
- Open/closed loop speed or torque control
- Induction/permanent magnet motors
- 590 Hz max. output frequency
- Zero-speed control without encoder
- Synchronous reluctance motor control
- Motor speed control range in closed loop of 1:1500
- Automatic energy efficiency optimization function
More Information
| Article name | GA700 frequency converters |
|---|---|
| Degree of protection | IP20 |
| Brand | YASKAWA |
| Brake Chopper | No Brake Chopper |
| User Interface | Integrated control panel |
| Power range | 0,55 - 630 kW |
| Voltage rating | 1 Phase 230 VAC, 3 Phase 230 VAC, 3 Phase 400 VAC |
| Motor Control | Vector Control |
| Series | General Purpose Drives |
