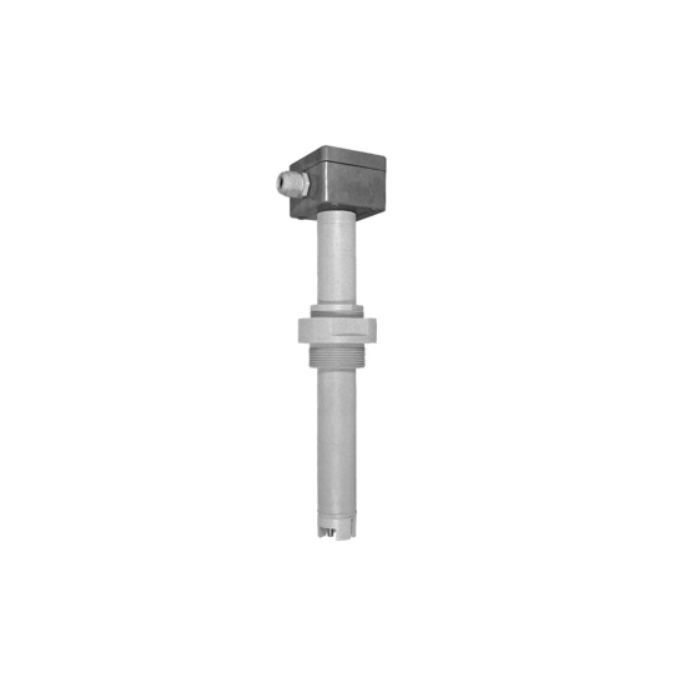

Fluid.iO Conductive electrodes with 24...230 V direct connection
- Artikel code: EFV2 20…230V
- Fluid.iO Conductive electrodes with 24...230 V direct connection
Product description
The overfill protection EFV2 (24...230 V AC/DC) is approved by the "DIBt" as overfill protection for liquids hazardous to water. The EFV2 overfill protection (24...230 V AC/DC) is adjustable, the response height can be adjusted on site.
Properties
- connection
- Polyesterdose (PO)
- Protection class
- IP 65
- connection thread
- G2"
- Union nut
- G2Âľ" | S 100x8
- Material Screw connection
- PE, PVC, PPH, PVDF
- Material Sensor rods
- Edelstahl (1.4571), Hastelloy B, Hastelloy C, Titan, Tantal, Kohlestifte
- Operating pressure
- atmosphärisch
- Resistance value of line monitoring
- 100 kΩ
- Adjustable sensitivity range
- 2..100 kΩ
Operating temperature
- PE
- atmosphärisch
- PVC
- atmosphärisch
- PPH
- 90 °C
- PVDF
- 100 °C
Power supply
- nominal voltage
- 24...230 V AC/DC
- Power consumption
- ≤ 2 W
Output
- potential-free changeover contacts
- 2
- Switching voltage
- max. 250 V AC / 30 V DC
- Switching current
- max. 5 A AC / 5 A DC
- Switching capacity
- max. 750 VA / 90 W
- displays
- Betriebs- LED grĂĽn Funktions-LED rot
- Switching delay
- ca. 0,5 s
More Information
| Article name | Fluid.iO Conductive electrodes with 24...230 V direct connection |
|---|---|
| Brand | ELB |
