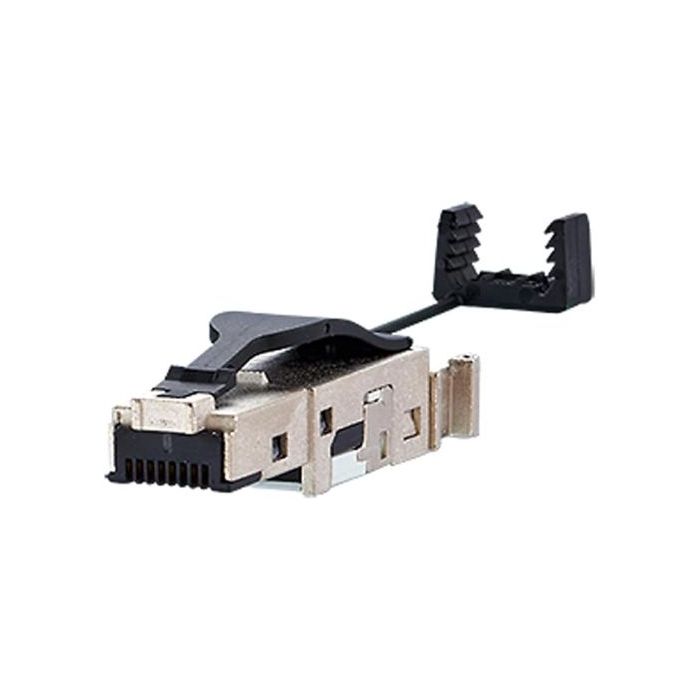

E-DAT Industry RJ45 field plug black Cat.6 Class EA

multi-port Cat.6 class EA plug to be assembled in the field compliance with class EA to ISO/IEC 11801, DIN EN 50173-1 8-wire RJ45 plug for AWG 22 to be assembled in the field connection of AWG 26/7 - 22/7, AWG 26/1 - 22/1 possible solid wire Cu conductor diameter 0.409 - 0.64 mm stranded copper wire diameter from 0.48 to 0.76 mm conductor diameter up to 1.6 mm cable jacket from 5.5 to 8.5 mm easy assembly - connection without special tools during mounting, the cable is mechanically fastened to the stuffer cap easy to actuate strain relief strain relief can be snapped on after assembly as color coding zinc die-cast housing for industrial use consists of only 2 parts protected locking hook can be used as test plug on IP67 protected jacks of variants 1, 4, 5, 6 and 14 variants: T568A, T568B, Industry
