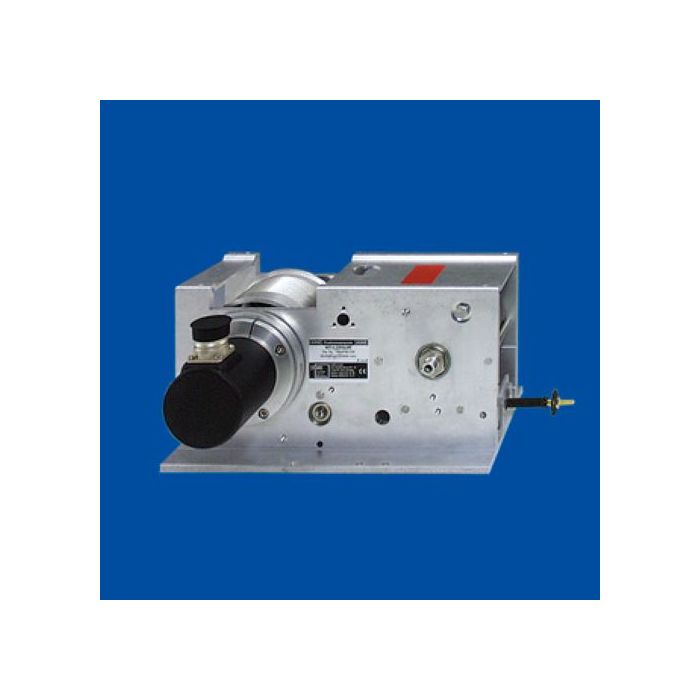

ASM Positiesensor met kabel max. 40m
- Artikel code: WS7.0 up to 40m
- ASM Positiesensor met kabel max. 40m
Productomschrijving
POSIWIRE®
Open sensor voor grote meetbereiken
Uitlopend model
Meetbereiken: tot 40.000 mm
Incrementeel, SSI, bussystemen
Sensormechanisme apart verkrijgbaar
| Output | Incremental encoder TSSI INTERBUS DEVICENET PROFIBUS Only mechanics |
| Resolution | Incremental: 1.5 and 10 pulse per mm TSSI: 0.073 mmup to 30,000 mm measurement range 0.088 mm at 40,000 mm measurement range |
| Linearity | Up to ±0.05 % f.s. |
| Sensing device | Optical encoder Only mechanics |
| Housing material | Plastic, aluminum Measuring cable: stainless steel |
| Protection class | IP50 |
| Connection | Depends on Encoder |
| Weight | Approx. 10 kg max. |
Meer informatie
| Artikel naam | ASM Positiesensor met kabel max. 40m |
|---|---|
| Merk | ASM |
| Beschermingsgraad | IP50 |
