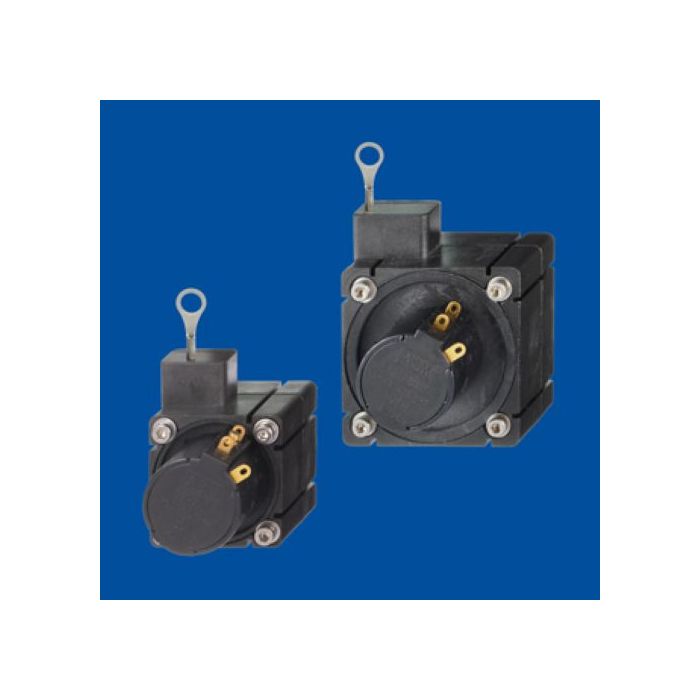

ASM Positiesensor met kabel max. 1m
- Artikel code: WS31 / WS42 up to 1m
- ASM Positiesensor met kabel max. 1m
Productomschrijving
POSIWIRE®
Meetlengte tot 1.000 mm
Beschermingsklasse IP50
Met precisiepotentiometer of optische encoder
| Output | Potentiometer 1 kΩ Voltage 0.5 ... 10 V Current 4 ... 20 mA, 2 wire Incremental encoder |
| Resolution | Analog: essentially infinite Incremental 6 pulses/mm, 10 pulses/mm |
| Linearity | Analog: ±0.35 % f.s., other values on request Incremental: ±0.20 % f.s. |
| Sensing device | Precision potentiometer Optical encoder |
| Housing material | POM Cable: stainless steel |
| Protection class | IP50 |
| Connection | Solder lugs (potentiometer) Cable output 4 pin socket M8 (available only with R1K) |
| Weight | Approx. 100 - 200 g |
Meer informatie
| Artikel naam | ASM Positiesensor met kabel max. 1m |
|---|---|
| Merk | ASM |
| Beschermingsgraad | IP50 |
