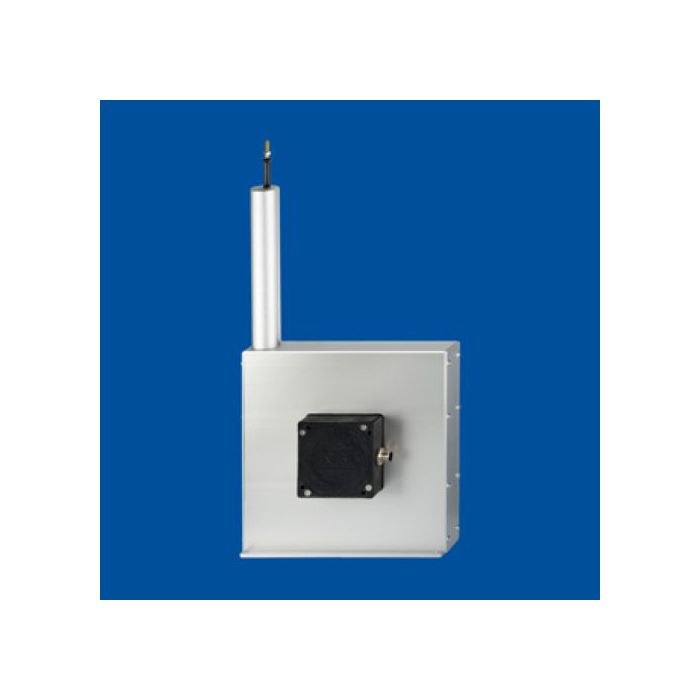

ASM Positiesensor met kabel max. 20m
- Artikel code: WS21 up to 20m
- ASM Positiesensor met kabel max. 20m
Productomschrijving
POSIWIRE®
Meetlengte tot 20.000 mm
Beschermingsklasse IP67
Met magnetische absolute encoder
Optionele redundante uitvoering
| Output | Voltage 0... 10 V, 0.5 … 10 V Current 4 ... 20 mA, 3 wire Voltage or current output, programmable (PMUV/PMUI) Voltage or current output, redundant SSI CANopen CANopen redundant SAE J1939 SAE J1939 redundant |
| Resolution | <0.002 % f.s. |
| Linearity | Up to ±0.05 % f.s. |
| Sensing device | Magnetic absolute encoder |
| Housing material | Aluminum and PBT Measuring cable: stainless steel |
| Protection class | IP67/IP69 (with mating connector only) |
| Connection | Connector M12 |
| Weight | Approx. 1,2 - 4,5 kg |
Meer informatie
| Artikel naam | ASM Positiesensor met kabel max. 20m |
|---|---|
| Merk | ASM |
| Beschermingsgraad | IP67 |
