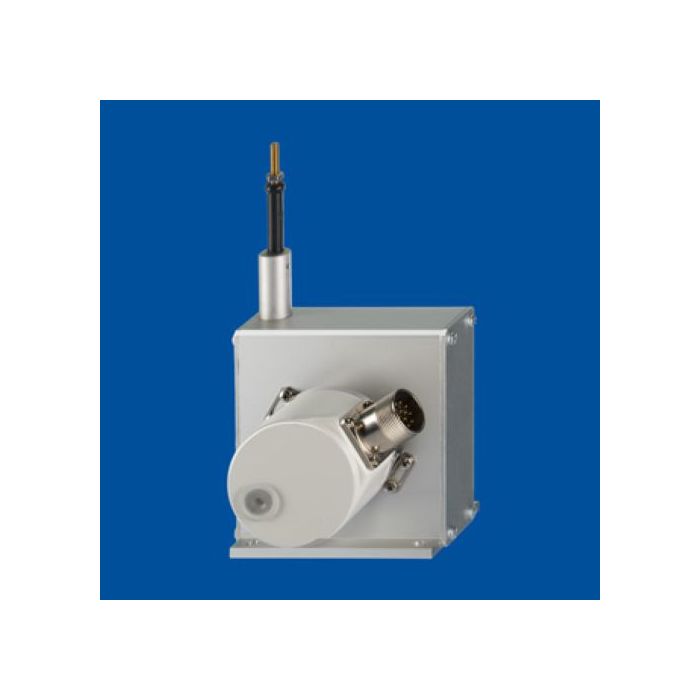

ASM Positiesensor met kabel max. 15m
- Artikel code: WS19KT up to 15m
- ASM Positiesensor met kabel max. 15m
Productomschrijving
POSIWIRE®
Meetlengte tot 15.000 mm
Beschermingsklasse IP64
Met optische encoder
Optionele geïntegreerde rem
| Output | Incremental encoder SSI CAN/CANopen INTERBUS DEVICENET PROFIBUS PROFINET |
| Resolution | Incremental: up to 10 µm Absolute: up to 40 µm higher resolutions optionally available |
| Linearity | Up to ±0.01 % f.s. |
| Sensing device | Optical encoder |
| Housing material | Aluminum Measuring cable: stainless steel |
| Protection class | IP64 |
| Connection | Depends on encoder type: connector or bus cover |
| Weight | Approx. 1.3 kg to approx. 6.1 kg depending on measurement range |
Meer informatie
| Artikel naam | ASM Positiesensor met kabel max. 15m |
|---|---|
| Merk | ASM |
| Beschermingsgraad | IP64 |
