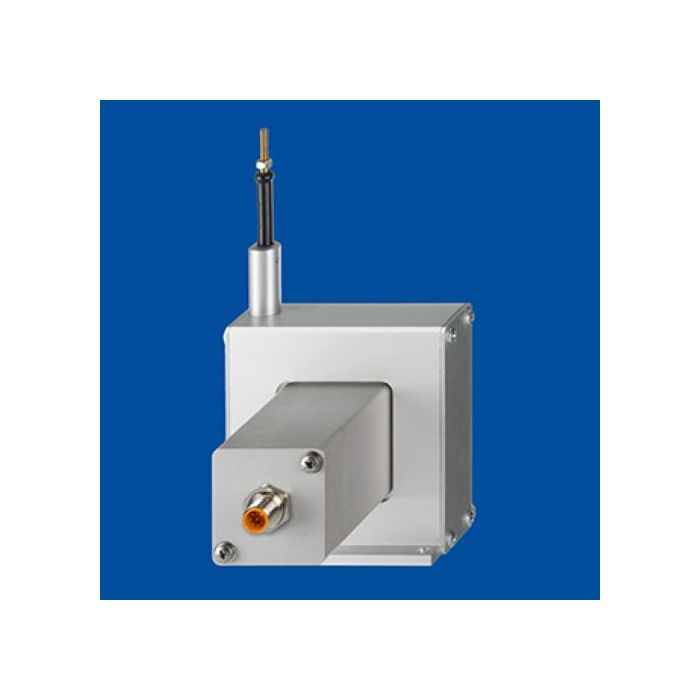

ASM Positiesensor met kabel max. 15m

  • Artikel code: WS17KT up to 15m
  • ASM Positiesensor met kabel max. 15m

Productomschrijving

POSIWIRE®

Meetlengte tot 15.000 mm
Beschermingsklasse tot IP66
Met precisiepotentiometer
Optionele geïntegreerde rem

OutputPotentiometer 1 kΩ
Voltage 0... 10 V, 0.5 … 10 V
Current 4 ... 20 mA, 2 or 3 wire
Voltage or current output, programmable (PMUV/PMUI)
SSI
ResolutionAnalog: essentially infinite
ADSI16: max. 16 bit f.s.
LinearityUp to ±0.05 % f.s.
Sensing devicePrecision potentiometer
Housing materialAluminum,
Measuring cable: stainless steel
Protection classIP64 (with mating connector only)
IP66 as option
ConnectionConnector M12
WeightApprox. 1.4 kg to approx. 6 kg depending on measurement range

Meer informatie

Artikel naam ASM Positiesensor met kabel max. 15m
Merk ASM
Data sheet
