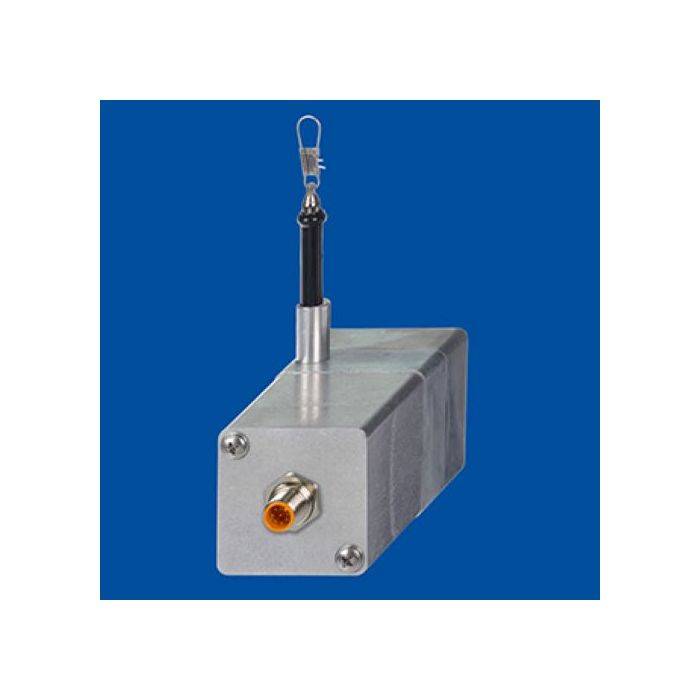

ASM Positiesensor met kabel max. 2m
- Artikel code: WS10ZG up to 2m
- ASM Positiesensor met kabel max. 2m
Productomschrijving
POSIWIRE®
Meetlengte tot 2.000 mm
Beschermingsklasse IP56
Optionele magnetische absolute encoder
| Output | Potentiometer 1 kΩ Voltage 0... 10 V, 0.5 … 10 V Current 4 ... 20 mA, 2 or 3 wire Voltage or current output, programmable (PMUV/PMUI) SSI CANopen SAE J1939 Incremental encoder |
| Resolution | Analog: essentially infinite ADSI16: max. 16 bit f.s. Incremental 10 P/mm , 25 P/mm |
| Linearity | Up to ±0.05 % f.s. |
| Sensing device | Precision potentiometer Optical encoder Magnetic absolute encoder |
| Housing material | Zinc die cast, aluminum, Measuring cable: stainless steel |
| Protection class | IP65 (with mating connector only) |
| Connection | Connector M12 |
| Weight | Approx. 1.1 kg |
Meer informatie
| Artikel naam | ASM Positiesensor met kabel max. 2m |
|---|---|
| Merk | ASM |
