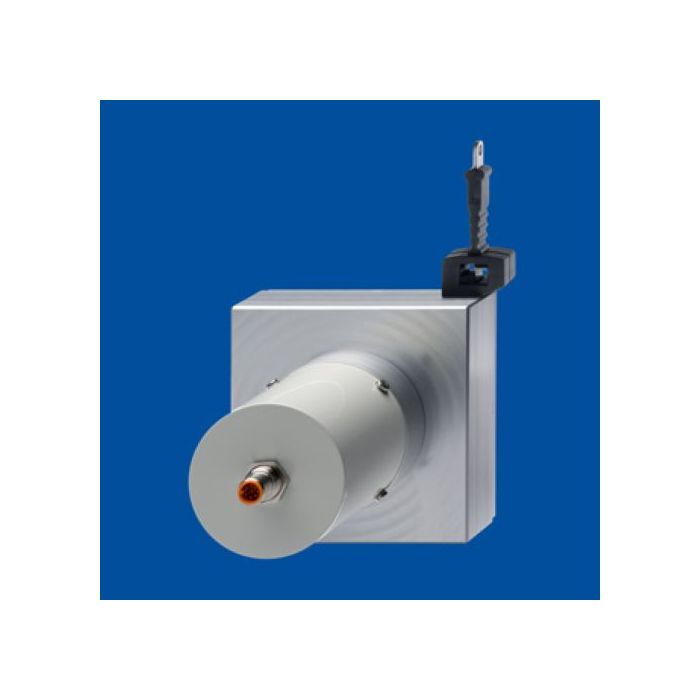

ASM Positiesensor met staalband max. 4m
- Artikel code: WB12 up to 4m
- ASM Positiesensor met staalband max. 4m
Productomschrijving
POSITAPE®
Meetlengte tot 4.000 mm
Beschermingsklasse tot IP67/69
Optionele redundante uitvoering
| Output | Voltage 0.5... 10 V Voltage 0.5... 4.5 V Current 4 ... 20 mA, 3-wire technology Voltage or current output, programmable Voltage or current output, redundant SSI CANopen SAE J1939 |
| Resolution | < 0.05 mm |
| Linearity | Up to ±0.05 % f.s. |
| Sensing device | Magnetic absolute encoder |
| Housing material | Aluminum Measuring tape: stainless steel, 10 mm wide, 0.08 mm thick |
| Protection class | IP67/IP69 |
| Connection | Connector M12 |
| Weight | approx. 3 kg |
Meer informatie
| Artikel naam | ASM Positiesensor met staalband max. 4m |
|---|---|
| Merk | ASM |
| Beschermingsgraad | IP69K, IP67 |
