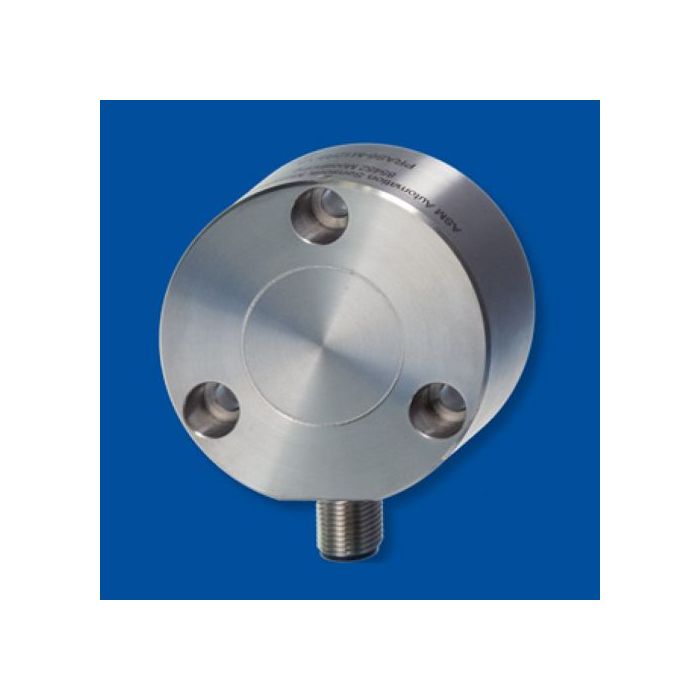

ASM Inclinatiesensor
- Artikel code: PTAM6 / PTDM6
- ASM Inclinatiesensor
Productomschrijving
POSITILT®
Robuuste roestvrijstalen behuizing
Meetbereik tot ±180°
Meting over één of twee assen
Beschermingsklasse IP67/IP69
| Output | Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Voltage or current output, tare function CANopen SAE J1939 |
| Measurement range | up to ±180° for 1 axis up to ±60° for 2 axes |
| Resolution | 0.05° |
| Linearity | ±0.5° |
| Sensing device | Integrated MEMS device |
| Housing material | Stainless steel EN 1.4404 (AISI 316L) |
| Protection class | IP67, IP67/IP69 as option |
| Connection | Connector M12, 5-pin Cable, standard length 2 m |
| Weight | Approx. 390 g (without cable) |
Meer informatie
| Artikel naam | ASM Inclinatiesensor |
|---|---|
| Merk | ASM |
| Beschermingsgraad | IP69K, IP67 |
