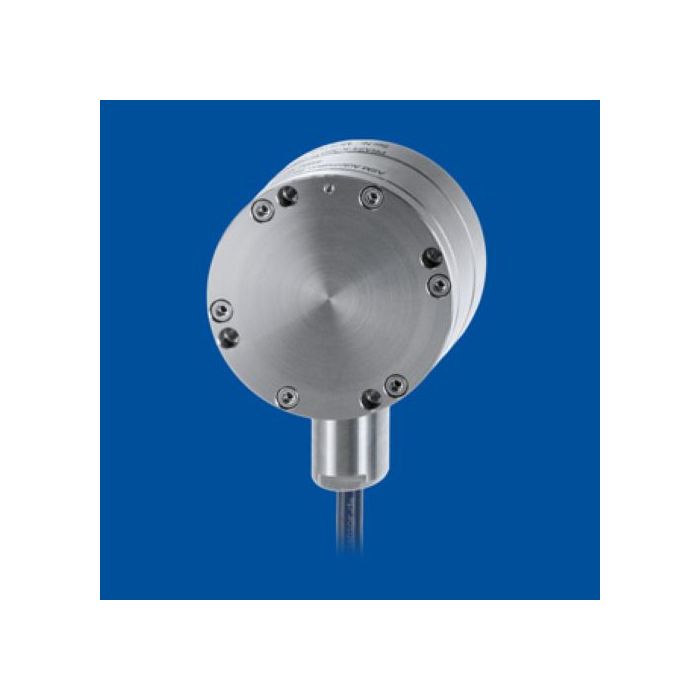

ASM Inclinatiesensor
- Artikel code: PTAM4
- ASM Inclinatiesensor
Productomschrijving
POSITILT®
Voor onderwatertoepassingen
Meetbereik tot ±180°
Meting over één of twee assen
Beschermingsklasse IP68 (10 bar), continu gebruik
| Output | Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Voltage 0.5 … 10 V, 0.5 … 4.5 V, tare function Current 4 ... 20 mA, 3 wire, tare function |
| Measurement range | up to ±180° (1 axis) up to ±60° (2 axes) |
| Resolution | 0.05° |
| Linearity | ±0.5° |
| Sensing device | integrated MEMS device |
| Housing material | Stainless steel EN 1.4404 (AISI 316L) |
| Protection class | IP68 (10 bar), continuous use |
| Connection | Cable, standard length 2 m |
| Weight | approx. 1,250 g (without cable) |
Meer informatie
| Artikel naam | ASM Inclinatiesensor |
|---|---|
| Merk | ASM |
| Beschermingsgraad | IP68 |
