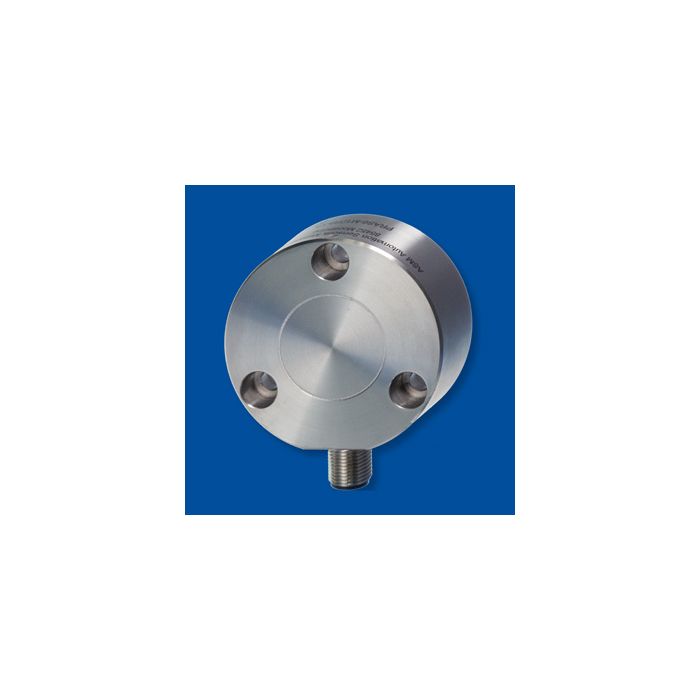

ASM magnetische hoeksensor
- Artikel code: PRAS6 / PRDS6
- ASM magnetische hoeksensor
Productomschrijving
POSIROT®
Absolute magnetische hoeksensor (0 tot 360°) in vlakke behuizing
Contactloos, met externe positiemagneet
Beschermingsklasse tot IP67/IP69
| Output | Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Voltage or current output, redundant Incremental encoder SSI CANopen CANopen redundant SAE J1939 SAE J1939 redundant |
| Measurement range | Analog: 0 ... 15° to 0 ... 360° (selectable in 15° increments) Incremental /SSI / CAN: 0 ... 360° |
| Resolution | Analog: 0.03 % (60 ... 360°), 0.1 % (15 ... 45°) Incremental: 1, 2, 3 ... 1024 pulses per revolution SSI: 12 bit / per revolution CAN: 0.05° max. |
| Linearity | Analog: ±0.3 % f.s. (typical) Incremental /SSI / CAN: ±1° (typical) |
| Repeatability | ±0.1° (typical) |
| Housing material | Stainless steel EN 1.4404 (AISI 316L) |
| Protection class | IP67/IP69 (connector output with IP67/IP69 connector cable) |
| Connection | Connector M12, 5 pin Connector M12, 8 pin Cable output, standard length 2 m |
| Weight | Approx. 390 g (without cable) |
Meer informatie
| Artikel naam | ASM magnetische hoeksensor |
|---|---|
| Merk | ASM |
