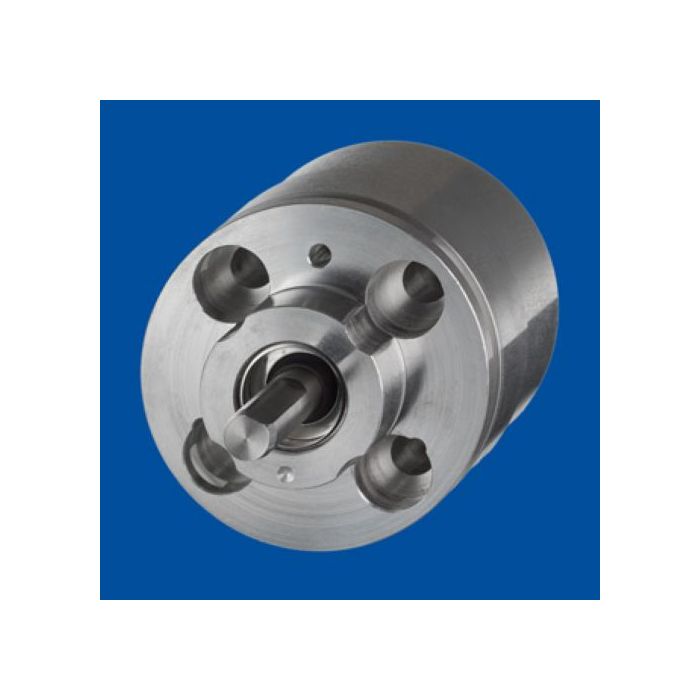

ASM magnetische hoeksensor
- Artikel code: PRAS5EX
- ASM magnetische hoeksensor
Productomschrijving
POSIROT®
Stofexplosieveilige hoeksensor (0 tot 360°) in vlakke behuizing
Met 10 mm as of contactloos
Beschermingsklasse IP65
| Output | Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire |
| Measurement range | 0 ... 15° to 0 ... 360° (selectable in 15° increments) |
| Resolution | 0.03 % (60 ... 360°), 0.1 % (15 ... 45°) |
| Linearity | ±0.3 % f.s. (typical) |
| Repeatability | ±0.03 % (60 … 360°) ±0.1 % (15 … 45°) |
| Housing material | Stainless steel EN 1.4404 (AISI 316L) |
| Protection class | IP65 Dust-Ex-proof: II 3D Ex tc IIIC T80°C Dc X |
| Connection | Connector M12, 5 pin |
| Weight | Approx. 500 g (without cable) |
Meer informatie
| Artikel naam | ASM magnetische hoeksensor |
|---|---|
| Merk | ASM |
