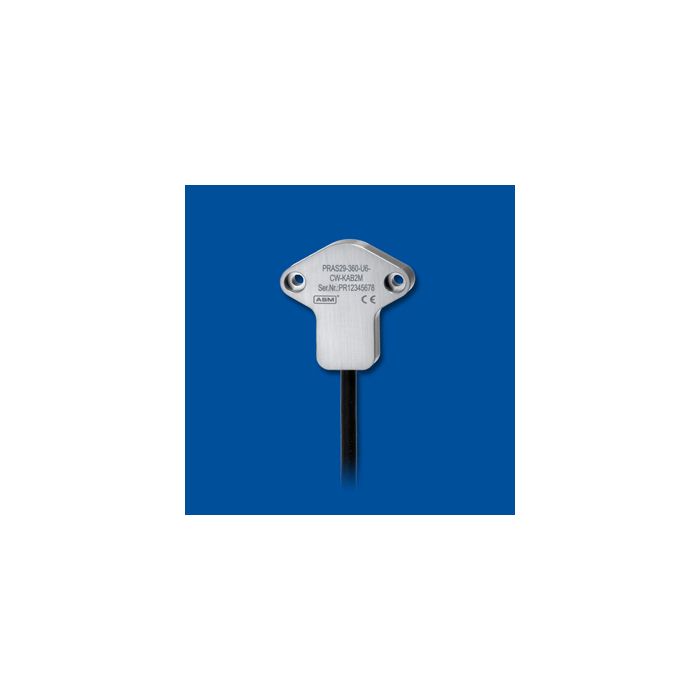

ASM magnetische hoeksensor
- Artikel code: PRAS29 / PRDS29
- ASM magnetische hoeksensor
Productomschrijving
POSIROT®
Absolute magnetische hoeksensor tot 360 graden
Contactloos met externe positiemagneet
Beschermingsklasse tot IP69
| Output | Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Voltage or current output, redundant CANopen CANopen redundant SAE J1939 SAE J1939 redundant |
| Measurement range | Analog: 0 ... 15° to 0 ... 360° (selectable in 15° increments) CAN: 0…360° |
| Resolution | Analog: 0.03 % (60 ... 360°), 0.1 % (15 ... 45°) CAN: 0.05° max. |
| Linearity | Analog: ±0.5 % f.s. (typical) CAN: ±1° (typical) |
| Repeatability | ±0.03 % (60 … 360°), ±0.1 % (15 … 45°) |
| Housing material | Stainless steel EN 1.4404 (AISI 316L) |
| Protection class | up to IP69 |
| Connection | Cable output, standard length 2 m CAN: cable 0.3 m with connector M12, 5-pin |
| Weight | approx. 80 g (without cable) |
Meer informatie
| Artikel naam | ASM magnetische hoeksensor |
|---|---|
| Merk | ASM |
