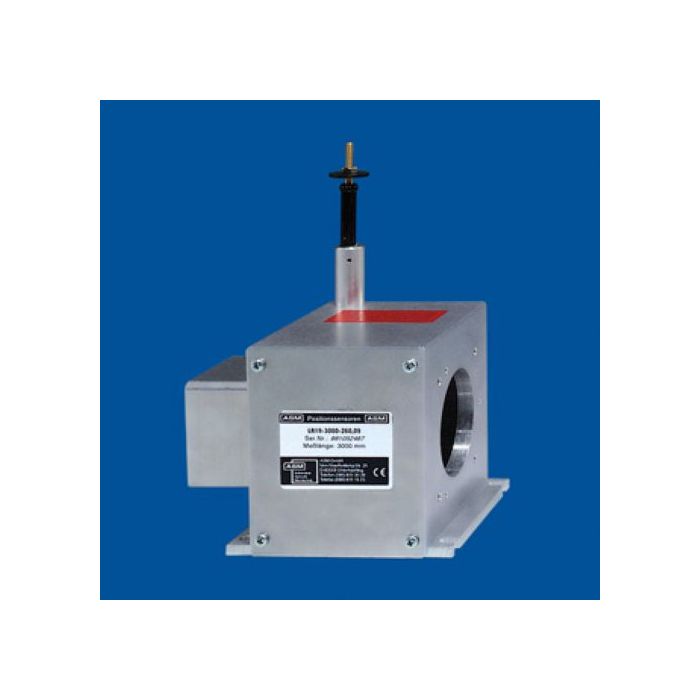

ASM Positiesensor met kabel max. 15m
- Artikel code: LR19 up to 15m
- ASM Positiesensor met kabel max. 15m
Productomschrijving
POSIWIRE®
Sensormechanisme voor incrementele en absolute encoders
Beschermingsklasse afhankelijk van de encoder
Meetbereiken tot 15.000 mm
Montage via synchro- of klemflens
| Output | Only mechanics |
| Resolution depending on measurement range | 2,000 mm = 163.84 mm/revolution 3,000 mm = 260.09 mm/revolution 5,000 mm = 409.60 mm/revolution 8,000 mm = 667.90 mm/revolution 15,000 mm = 600.00 mm/revolution |
| Linearity | Up to ±0.01 % f.s. |
| Sensing device | Only mechanics |
| Housing material | Aluminum Cable: stainless steel |
| Protection class: | Depending on encoder |
| Connection | Only mechanics |
| Weight | Approx. 1.5 kg up to approx. 7.3 kg depending on measurement range |
Meer informatie
| Artikel naam | ASM Positiesensor met kabel max. 15m |
|---|---|
| Merk | ASM |
