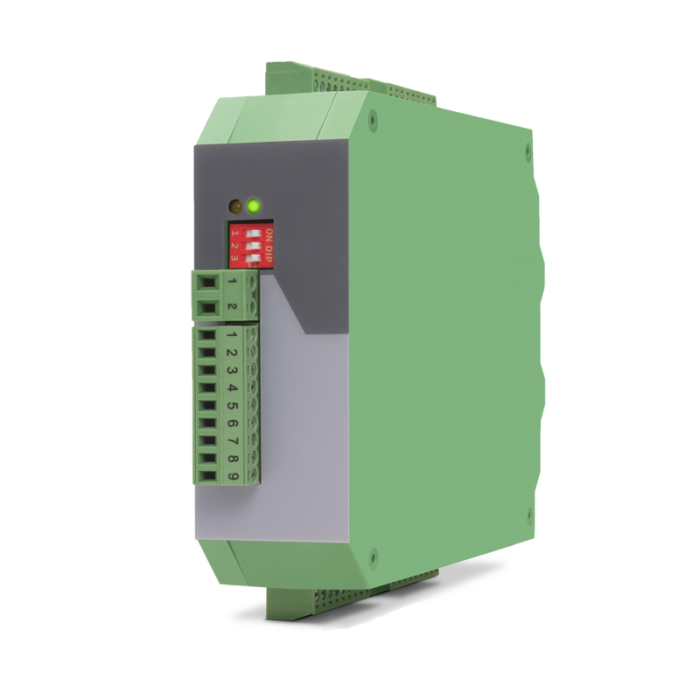

Signaaldistributeur voor incrementele encoder met potentiaalafscheiding, 4 uitgangen

De GT224 is een snelle en nauwkeurige pulssplitter met één pulsingang en vier pulsuitgangen. Dankzij het modulaire ontwerp is uitbreiding via busconnectoren eenvoudig.

• 1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422 / HTL differential]
• Input frequency up to 350 kHz [SE TTL / SE HTL] or 1 MHz [RS422 / HTL differential]
• 4 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
• BUS interface for quick and easy expansion of the number of outputs
• Power supply 10 ... 30 VDC
• Signal delay time max. 430 ns
• Input level at RS422 / TTL (differential voltage > 0.5 V),
• Input level at HTL differential (differential voltage > 2 V),
• Input level at HTL (asymmetric) LOW: 0 ... 5 V HIGH: 9 ... 30 V
• Input level at TTL (asymmetrical): LOW: 0 ... 0.6 V HIGH: 2.2 ... 5 V
• Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
• Dimensions W x H x D = 34 x 118 x 140 mm (1,34 x 4,65 x 5,51")
