Fluid.iO Conductieve elektrode met 2 tot 5 meetpunten

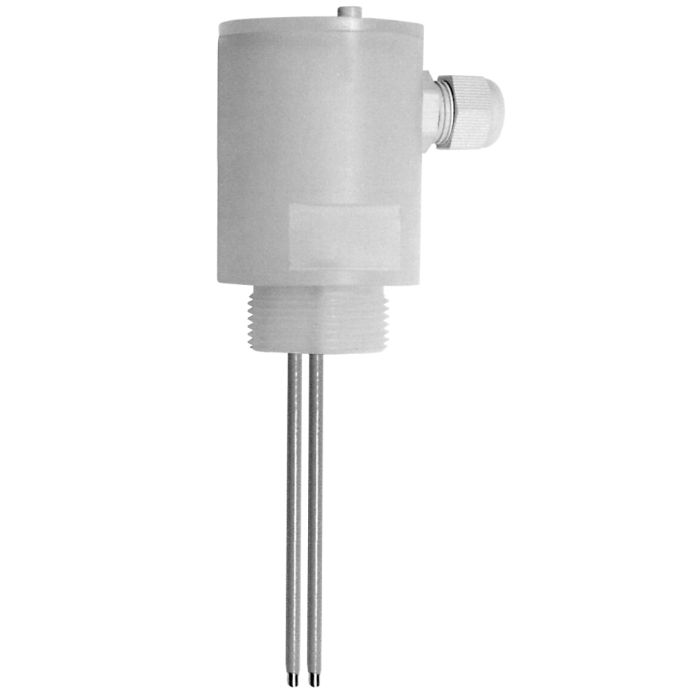

Conductive electrodes type EF2...5 are approved by the “DIBt” (German Institute for Structural Engineering) as liquid level limit switches for the overfill protection of containers for storing water-endangering liquids.

The EF2...5 fittings are made of PE, PPH, PVC or PTFE, depending on the requirements. The electrode rods are made of stainless steel 1.4571, Hastelloy C, titanium or tantalum. This makes the EF2...5 conductive electrodes suitable for use with highly aggressive media.

Properties

Protection class EN60529

IP 65

connection thread

G1" | G1¼" | G1½"

Union nut

G2¾" | S 100x8

Operating temperature PE / PVC

atmospheric

Operating temperature PPH

90°C

Operating temperature PTFE

100°C

Operating pressure

atmospheric

Resistance value of line monitoring

22 kΩ / 100 kΩ

Spacer form length > 1000 mm

1 per 1000 mm

rod length

max. 6.000 mm

Rod diameter

4mm | 6 mm

Material

Screw connection

PPH | PE | PVC | PTFE

Sensor rods

Edelstahl (1.4571), Hastelloy C, Titan, Tantal

Coating

PTFE
