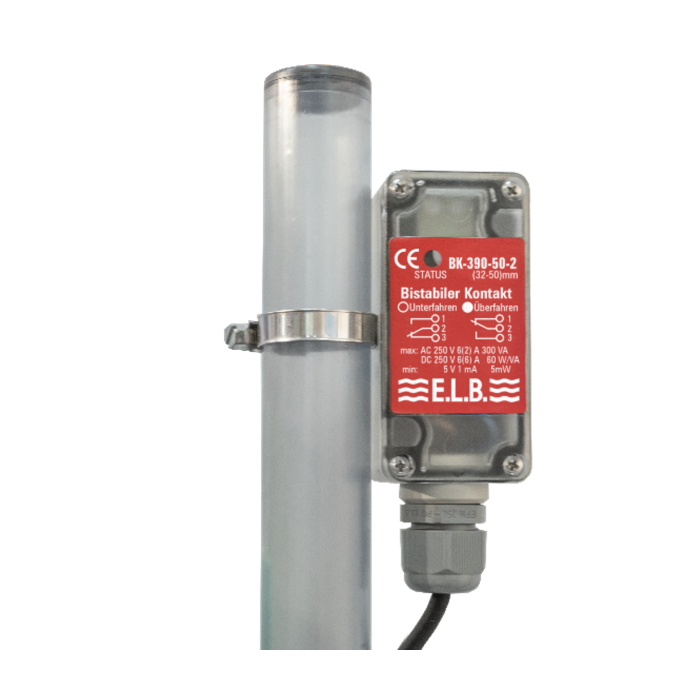

Fluid.iO bistabiel wisselcontact

Magnetically actuated changeover switch, which permanently changes its electrical switching state as a result of a magnetic system passing by, depending on the direction of movement.

Properties

Protection class EN60529

IP 65

Operating temperature

–25...+70 °C

Wire cross-section max.

1,5mm²

Switching point distance between two contacts

min. 40 mm

Switching hysteresis

ca. 10-15 mm

Material

Housing

Polycarbonat

Mounting clip

V2A, Kabelbinder (PP)

Rivet

V2A

Screw connection

M 20 x 1.5, Polyamid

Weight

BK-390-50

137 g

BK-390-63 / BK-380

140 g

Switching contact

Switching voltage

5...250 V AC/DC

Switching current

1mA...6 A AC/DC

Switching capacity(min.)

300 VA, 60 W

Switching capacity(max.)

5 mW
