Analoge absolute encoder met één omwenteling

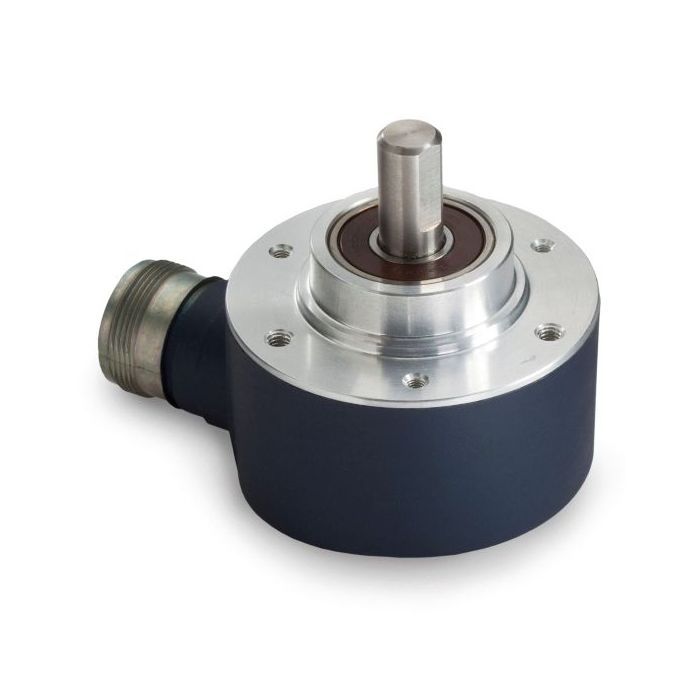

AHM SERIES: ABSOLUTE SINGLE TURN ENCODER

    AHM5 characterizes itself by its strong robustness
    of the mechanical and electro-magnetic parts:

• Application Fields: agriculture, construction, forestry vehicles, medical applications, solar panels...
• Magnetic technology, contactless.
• Strong robustness with its reinforced bearing block and its stopped bearings.
• Available resolution up to 12 bits per revolution.
• Power supply from 10 to 30Vdc.
• Available Output Interfaces : 0..10V, 0.5..4.5V, 4..20mA.
• Available in Options: Extended temperature range (up to -40..+125°C), IP67/IP69K...
• Also Available : PWM, SSI and CANopen outputs.
