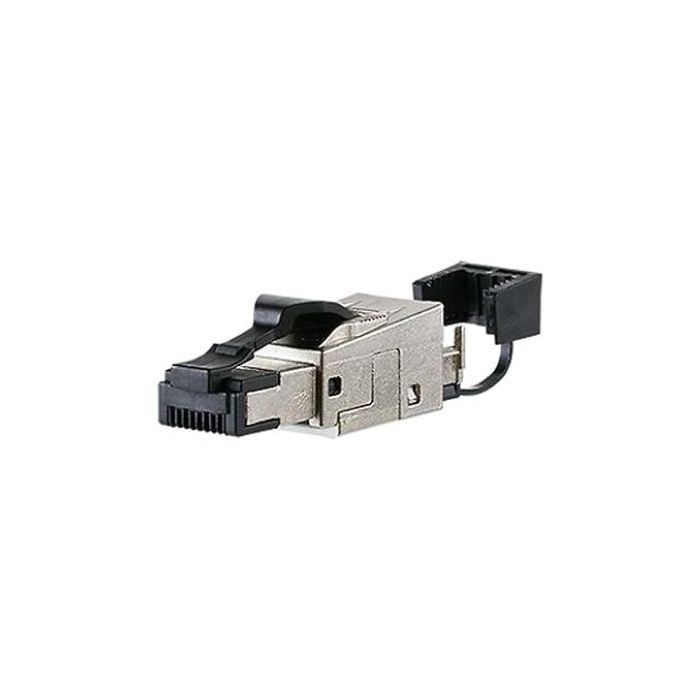

C6A RJ45 field plug pro

Cat.6A class EA RJ45 plug to be assembled in the field fully shielded and multi-port capable straight (180°) cable feed easy assembly - connection without special tools wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.409 to 0.64 mm transmission characteristics Cat.6A according to ISO/IEC 11801 compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1 degree of protection IP20 for cable jacket diameter from 5.5 to 9.5 mm zinc die-cast housing for industrial use consists of only 2 parts strain relief by latching clip directly on the stuffer cap protected locking hook reconnectable
